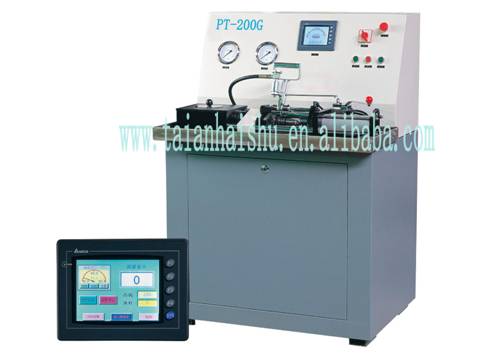

PT-200G Cummins PT injector flow test bench
Brief introduction

Use
The test rig used for Cummins N, K, L10, M11 series engine injector debugging, maintenance and testing.
Characteristics
1. the use of intelligent man-machine interface, easy to operate and simple to facilitate the exchange and use of the user and the machine.
2. automatic servo mechanism and servo system to ensure that the traffic monitoring repeatability and high accuracy.
3. Oil supply handle design is clever, online monitoring and adjusting the size of the fuel injection quantity, the injector does not have to be removed from the test rig, time-saving, quick and convenient.
4. the injector spray backpressure analog device. Its simulation within the engine cylinder fuel injection conditions, so that the device detects engine close to the actual working conditions.
5. the test rig electrical man-machine interface, sensors, PLC control, the electrical system has high reliability and humane.
Technical parameters
1. the measuring range: 0 ~ 1000cc/stroke
2. oil temperature: 38 ± 2 ° C
3. clamping pressure: 74psi (0.5MPa)
4. oil pressure: 100psi (0.69MPa)
5. power: AC 380V 50HZ
6. Power: 3.5KW
7. Dimensions: 1020 × 800 × 1430mm
8. Weight: 450Kg
