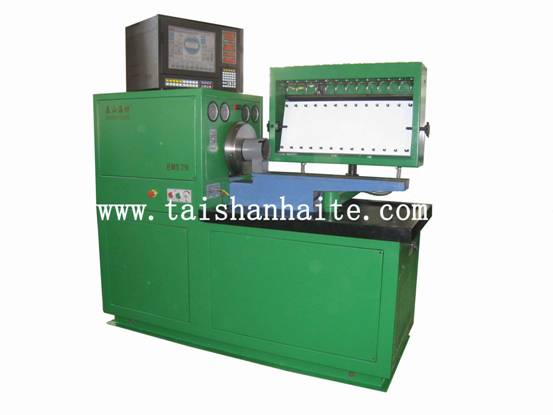

EM579 Fuel injection pump test bench
1. Use
① Commissioning of each cylinder injection pump fuel supply and fuel supply uniformity;
② Commissioning supply starting point fuel injection pump, oil interval angle;
③ Avariety of performance governor debugging;
④ The fuel pump tightness test;
⑤ Fuel dispensing pump back tests;
⑥ The distribution pump pressure compensator checking;
⑦ The distribution pump chamber pressure measurement;
⑧ The advance angle measurement;
⑨ The gear lever stroke measurements.
2, Characteristics
① Industrial computer;
② The color screen display;
③ Speed manual and automatic optional;
④ The chassis is built door.
3.Technical parameters
|
Test Bench Model |
EM579－55/75 |
EM579－110/150 |
|
Spindle speed range (rpm) |
0~4000 | |
|
Test number of cylinders |
12 | |
|
Spindle maximum output power(kw) |
5.5/7.5 |
11/15 |
|
Spindle center height(mm) |
125 | |
|
Fuel oil supply(L/min) （L/min） |
≥6 |
≥8 |
|
Fuel pressure(MPa) （MPa） |
Low≥0.4，High≥4.0 低压≥0.4，高压≥4.0 | |
|
Injection times |
0~1000 | |
|
Fuel control temperature(℃) |
40±2 | |
|
Positive pressure(MPa) (MPa) |
0~0.16 | |
|
Negative pressure(MPa) |
－0.1~0 | |
|
DC power supply (V) |
12/24 | |
|
Oil return measurements (L / h) |
6~60 | |
|
Gear lever stroke (mm) |
0~25 | |
|
Advance angle (°) |
0~10 | |
|
Dimensions (L × W × H) |
1850×1100×1750 | |
|
Weight (Kg) |
800 |
900 |
